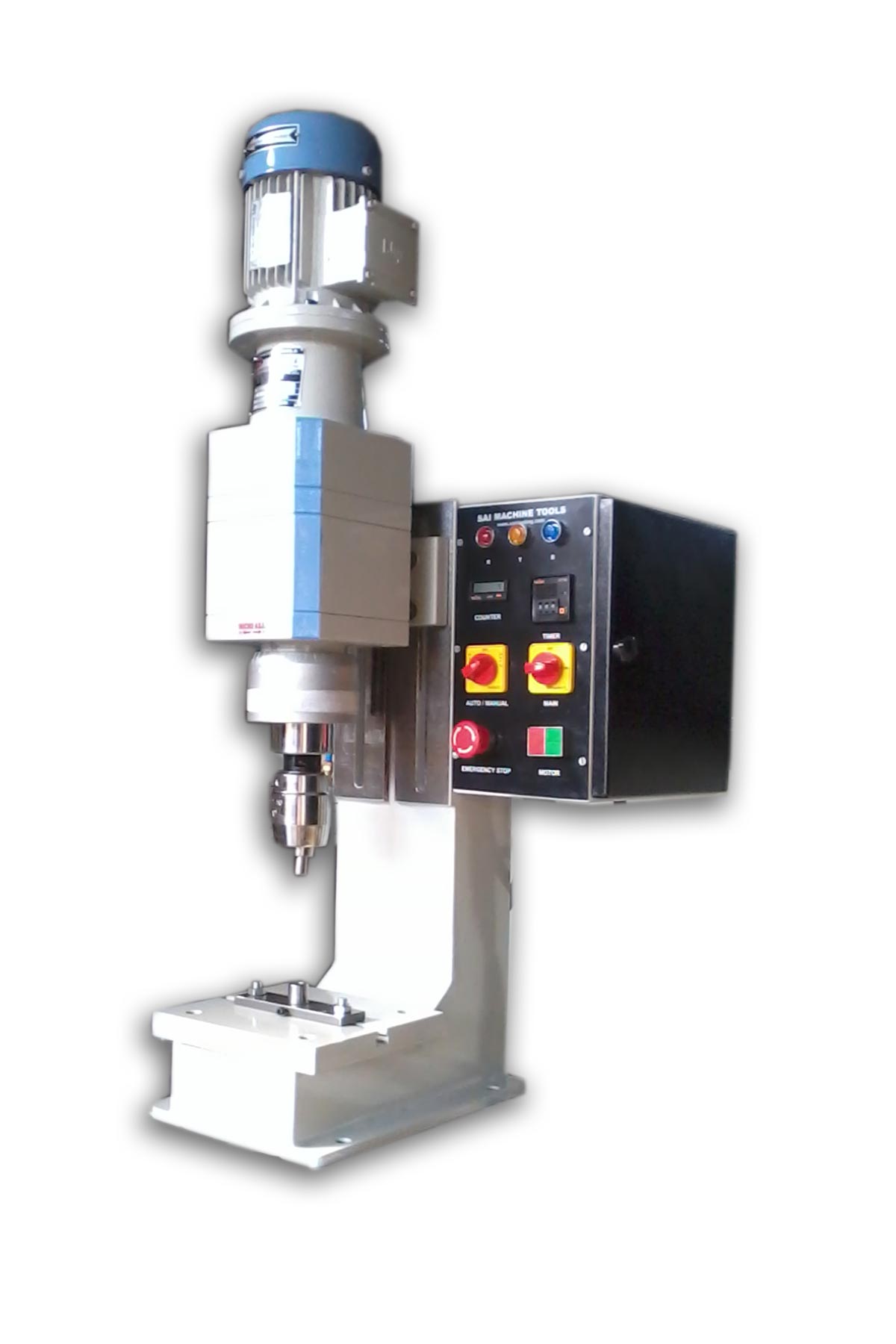

Bench Type SRM 03 To 12 PneumaticFeatures


Specifications
Features

Bench Type SRM 03 To 12 Pneumatic Specification

We are a noteworthy organization in this domain, engaged in providing superior quality Orbital Riveting Machine. The manufacturing of this machine is carried out under the supervision of our experts using high quality components and cutting-edge technology. This machine is used to join materials together automatically. Further, this Orbital Riveting Machine finds applications in riveting of brake linings for commercial vehicles, aircraft and locomotives, metal brackets, window and door furniture, latches, leather goods, sensitive electrical or electronic components, etc. This Machine is specially manufacturing for Pin Bar Riveting / Orbital Riveting. Our product is mainly used by pharmaceutical industries.

Technical Details

	MODEL	SRM-3	SRM-6	SRM-8	SRM-10	SRM-12	SRM-15	SRM-20
	M. S. Solid	0.5 to 3	3 to 6	3 to 5.5	4 to 7	5 to 8.5	6 to 10	7 to 13
	S. S. Solid	0.5 to 2	2 to 4	4 to 8	5 to 10	6 to 12	8 to 15	10 to 20
	Cu. Brass Solid	2 to 5	4 to 8	6 to 12	7 to 15	8 to 18	10 to 20	13 to 26
	Aluminium Solid	3 to 6	5 to 10	7 to 15	6 to 13	6 to 12	8 to 15	10 to 20
	Semi- Hollow M. S.	3 to 6	5 to 10	6 to 13	6 to 15	8 to 16	10 to 19	12 to 24
	Semi- Hollow Cu. Brass & Al	4 to 8	7 to 15	8 to 17	10 to 20	11 to 25	12 to 25	15 to 30
Throat Depth		135 m.m	135 m.m	150 m.m	150 m.m	200 m.m	200 m.m	200 m.m
Shut Height (Max)		125 m.m	150 m.m	180 m.m	200 m.m	200 m.m	225 m.m	225 m.m
Stroke Length		40 m.m	50 m.m	60 m.m	60 m.m	60 m.m	50 m.m	50 m.m
Motor 415V 3Phase AC 1440 rpm		0.25 HP 0.18 KW	0.5 HP 0.375 KW	0.75 HP 0.55 KW	1 HP 0.75 KW	1.5 HP 1.10 KW	2 HP 1.50 KW	3 HP 2.20 KW
Actuation		Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Hydro- Pneumatic	Hydro- Pneumatic
Air Pressure kg/cm2		3 to 7	3 to 7	3 to 7	3 to 7	3 to 7	3 to 7	3 to 7
Cycle Time Adjustment (sec)		0 to 9.9	0 to 9.9	0 to 9.9	0 to 9.9	0 to 9.9	0 to 9.9	0 to 9.9

Any higher size as per requirement.
Note: Due to continuous product development, are subject to revision without notice.

Bench Type SRM 03 To 12 Pneumatic

Excellent performance

Robust construction

Compact design

Longer service life

Excellent performance
Robust construction
Compact design
Longer service life
